Welcome to the official website of TSD SOLAR
Your current location: Home > Product Center > Solar Roof System

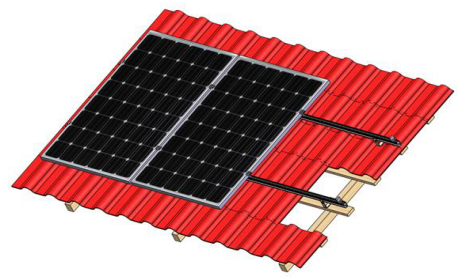

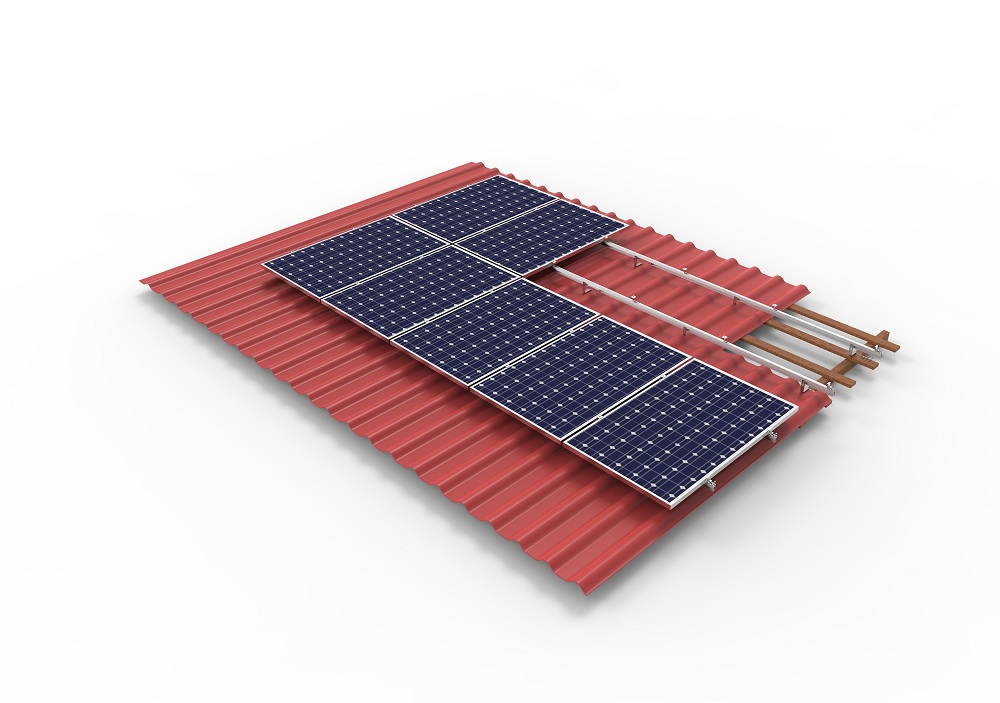

Tile Roof Mounting Solution
TSDsolarpitchedroofmountingsystemhasgreatflexibilityandextremelysuitablefor rooftopsolarsystembothincommercialandresidentialhouse.Theinnovativerailway andDshapeblockdesignshavemadetheinstallationeasierandfaster.Its preassemblyandcustomizedsolutionshasbeentime-savingandcost-efficient.
Specification

Maxwindcapacity:45m/s

Maxsnowcapacity:0.8KN/m2

Spanrange:0.1-1.8m

Standardlengthofblock:40mm

Designstandard:AS/NZS1170,ASCE7-05,DIN1044

Performance parameter

Installationsite:tileroof

Mainmaterial:AL6005-T5/SUS304

Fastenermaterial:SUS304

Applicablemodules:frameorframeless

Componentarrangement:horizontal/vertical

Warranty: 10 years

Product Features

  • Easy installation
    Well-designed clips can be mounted to the track from any position. The product is pre-installed and shipped from the factory. There is no need to cut and weld on site when installing the bracket. There are fewer on-site installation procedures, which effectively improves the installation efficiency.
  • Strong compatibility
    The product has innovative track and D-type block design, making installation more convenient and fast. Highly pre-assembled and custom solutions save your installation time and costs.
  • Safe and reliable
    Made of high-quality aluminum alloy and stainless steel to prevent corrosion and oxidation; recycling, green and environmental protection. The overall structure fully considers the load-bearing, wind-resistant, anti-snow and other factors to ensure safety and reliability.

Installation instructions

Installation Guide

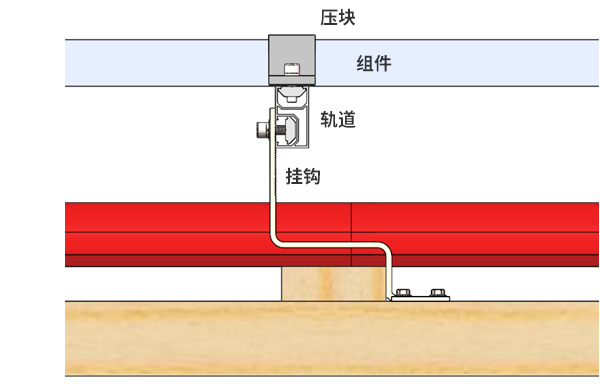

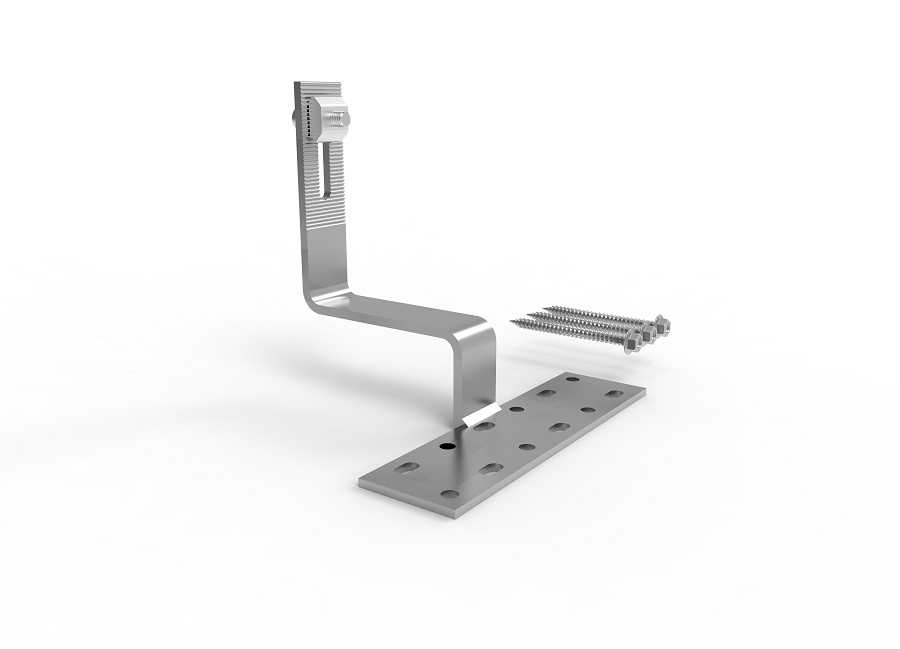

Step 1: remove the tile                                                                      Step 2: install the hook

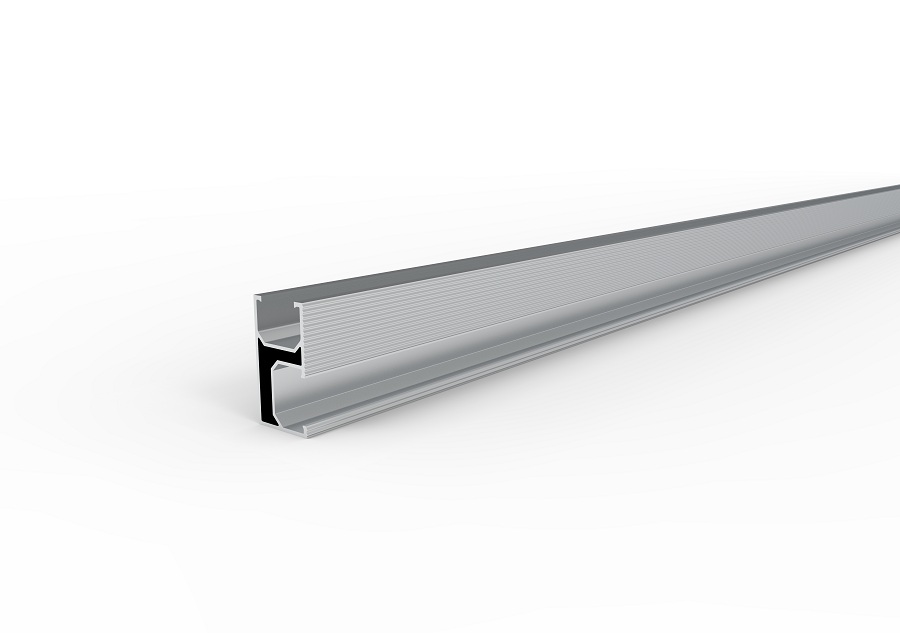

Step 3: install the rail                                                                         Step 4: install panels
