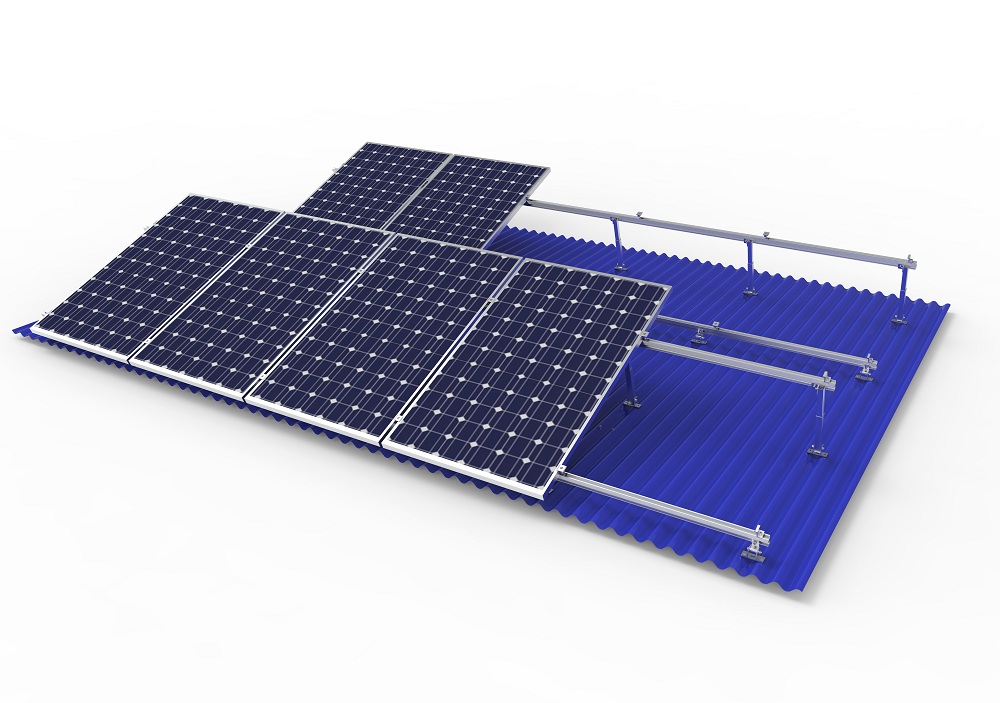

Tin Roof Adjustable Mounting Solution
TSD adjustable mounting system is applicable to many common framed solar panels
to mount to the color steel tile at specific angle. Adjustable angle includes 10-15
degree, 15-30 degree, 30-60 degree. Users are able to adjust the angle to attain the
best sun light efficiency. The system is made of high intensity aluminum alloy. It's light
weighted with good strength and great corrosion stability.
Specification
Max wind capacity：42m/s
Max snow capacity：1KN/m2
Span range：0.6-2.5m
Installation angle deviation：±2°
Adjustable angle：10-15，15-30，30-60
Design standard：AS/NZS1170, ASCE 7-05, DIN1044
Performance parameterInstallation site: color steel tile roof
Main material：AL6005-T5
Fastener material：SUS304
Applicable modules：framed
Component arrangement: vertical
Warranty period：10years

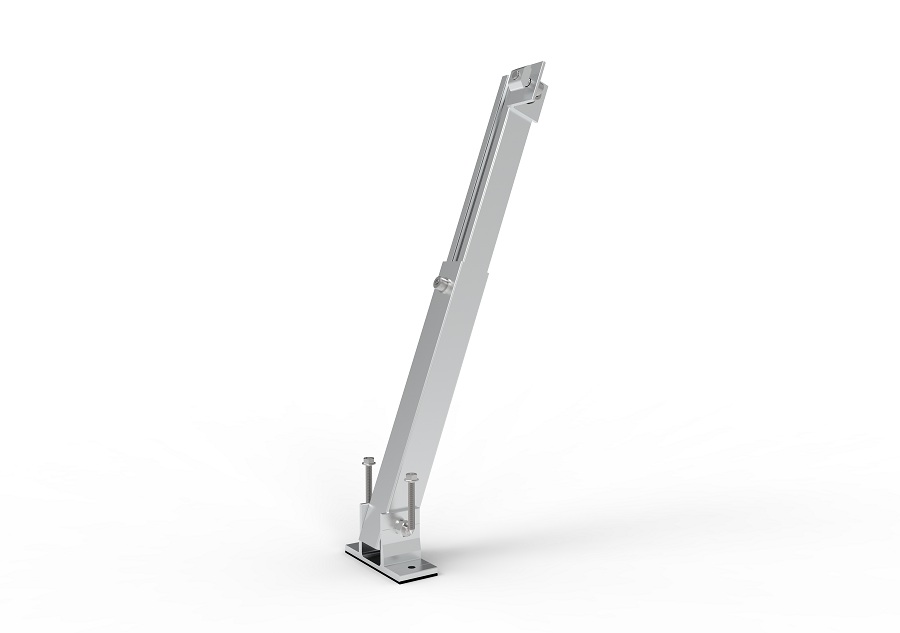

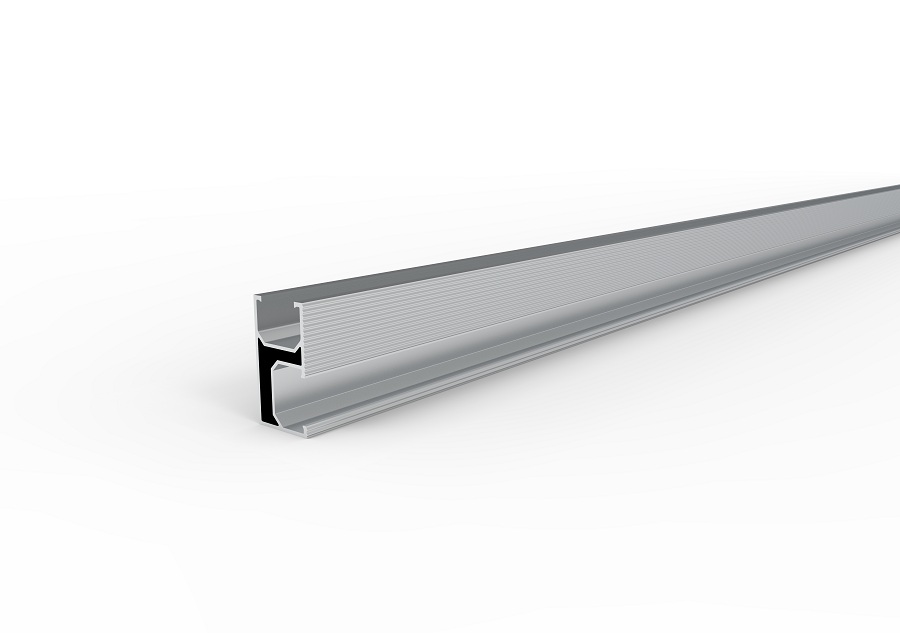

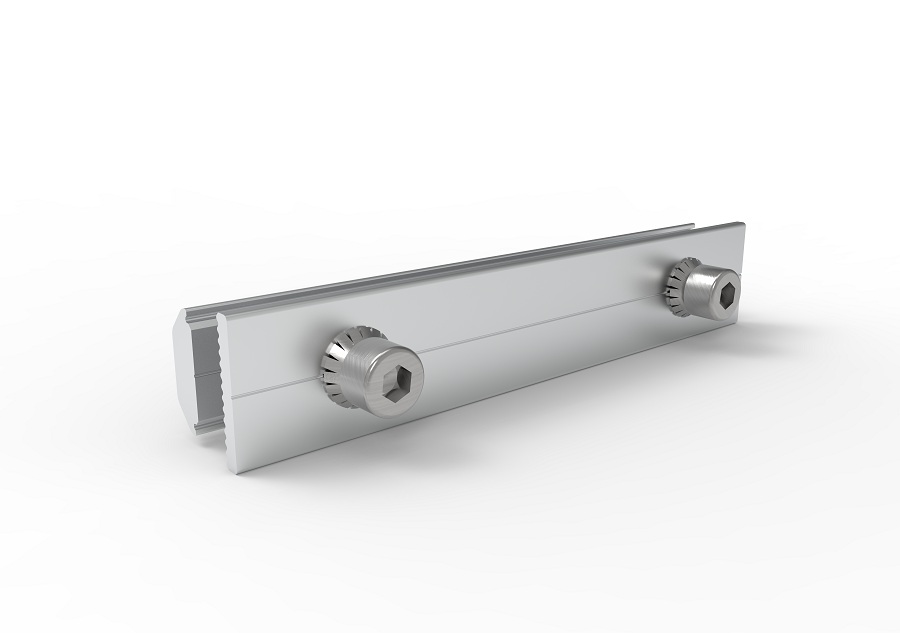

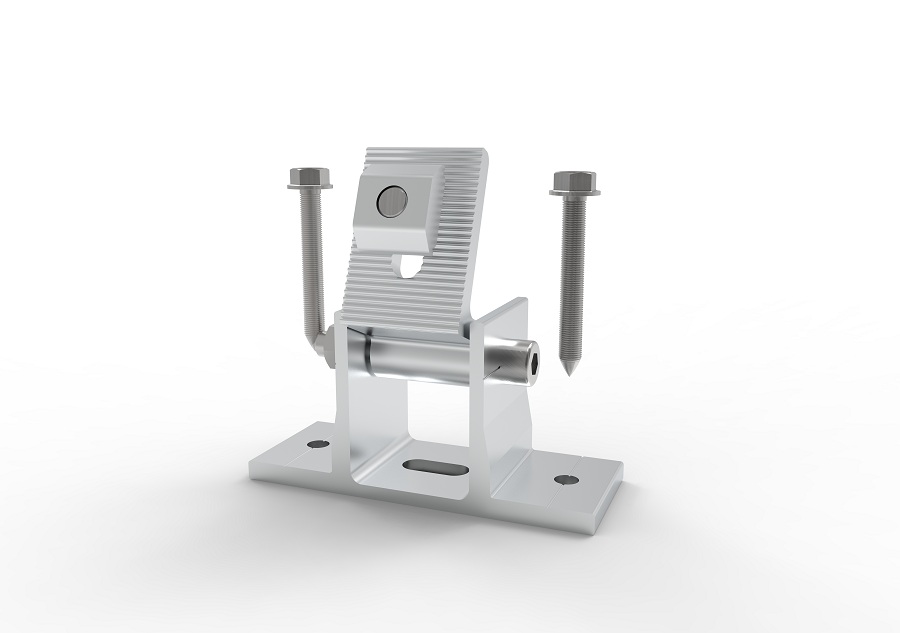

Bracket System Components
Product Features
- Angle adjustment
The bracket system can be adjusted in angle. When the season changes, the system angle is adjusted appropriately to ensure that the components have a good amount of sunshine and improve the power generation efficiency of the components. - Easy installation
Well-designed brackets and components do not require on-site cutting and welding, and fewer on-site installation procedures, effectively improving installation efficiency. - Strong compatibility
The adjustable bracket system can meet the installation requirements of different specifications of PV modules. At the same time, it is compatible with the different arrangement of components. - Safe and reliable
The bracket system is made of high quality aluminum alloy and stainless steel to prevent corrosion and oxidation. The product can be recycled to reduce environmental pollution. The overall structure fully considers the factors of load bearing, wind resistance, snow resistance, earthquake resistance, etc., and has been calculated and tested to ensure safety and reliability.
Installation instructions
Installation Guide

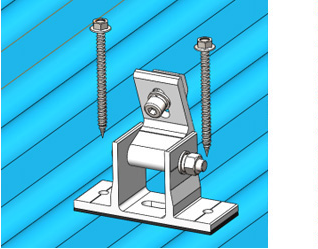

Step 1: fasten the front column onto the ridge Step 2: fasten the rear column onto the ridge

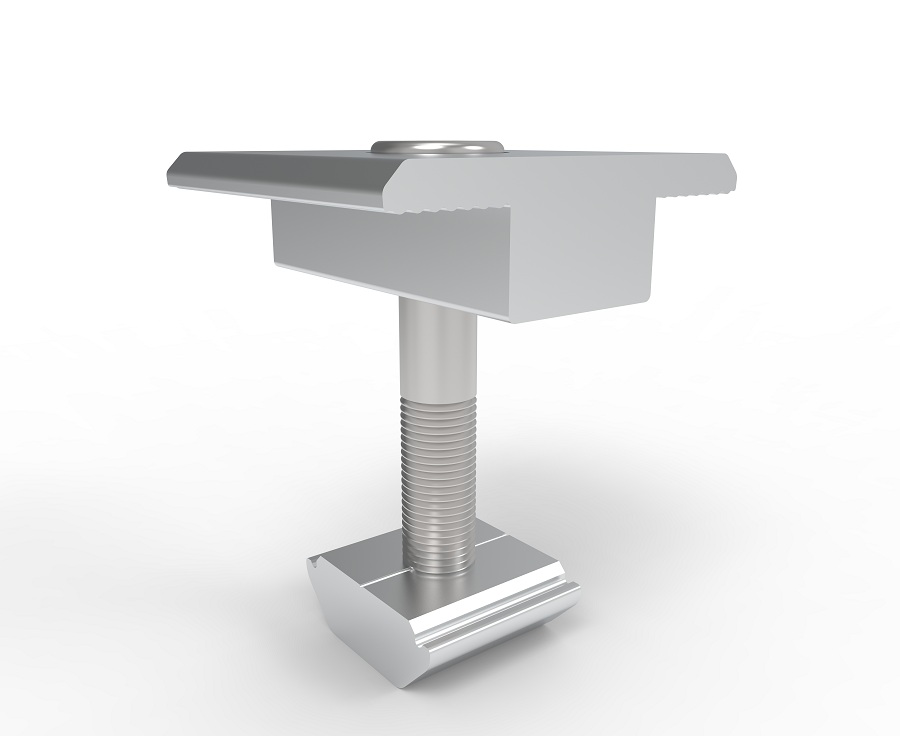

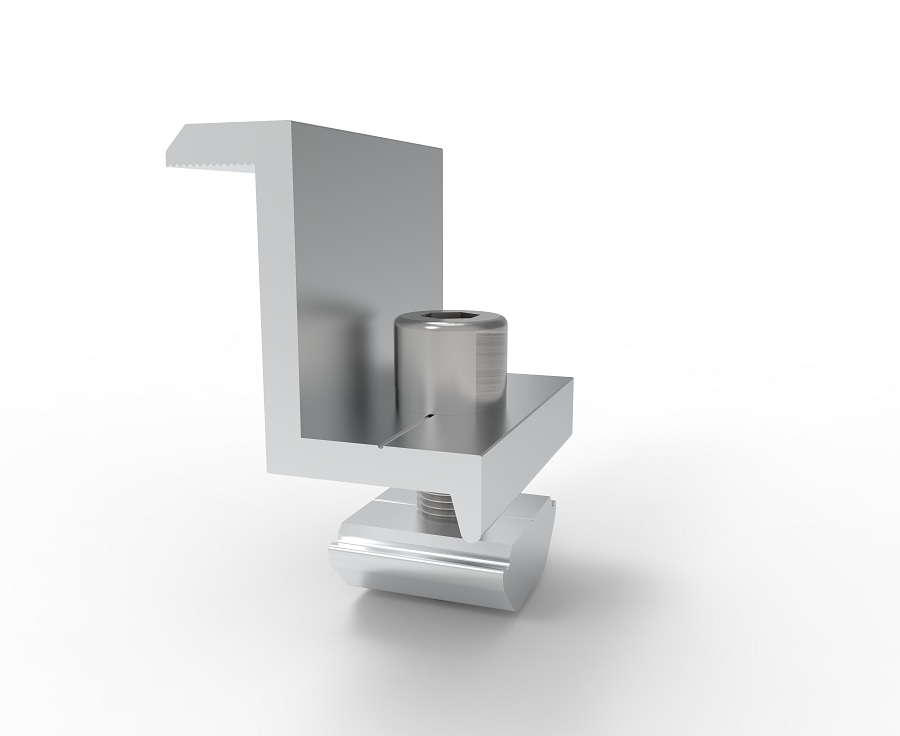

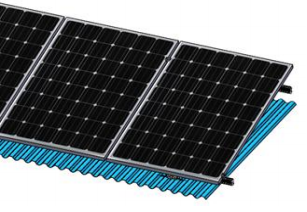

Step 3: install the rail Step 4: fasten panels with end and mid clamps
