technical parameterMaximum wind resistance: 52m/s
Maximum snow resistance: 1.5KN/m2
Span range: 2.5-3.8m
System installation angle deviation: ± 2 °
Design standard: AS/NZS1170 ASCE 7-05 DIN1044, etc.
Performance parameterInstallation site: flat roof or level ground
Body material: AL6005-TH
Fastener material: SUS304
Applicable components: framed or frameless
Applicable arrangement: vertical or horizontal
Warranty period: 10 years

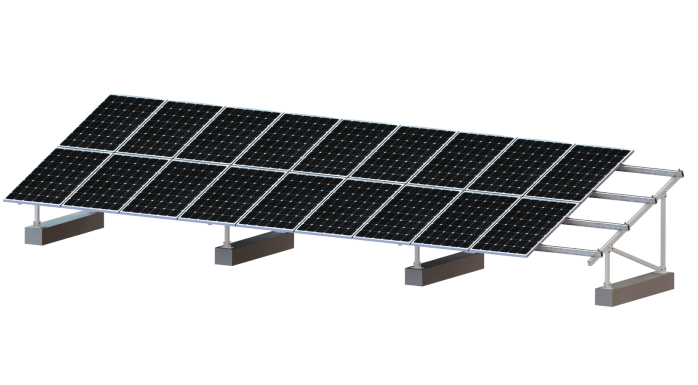

Bracket System Components
Product Features
- Easy installation
Well-designed brackets and components do not require on-site cutting and welding, and fewer on-site installation procedures, effectively improving installation efficiency. - Strong compatibility
The adjustable bracket system can meet the installation requirements of different specifications of PV modules. At the same time, it is compatible with the different arrangement of components. - Safe and reliable
The bracket system is made of high quality aluminum alloy and stainless steel to prevent corrosion and oxidation. The product can be recycled to reduce environmental pollution. The overall structure fully considers the factors of load bearing, wind resistance, snow resistance, earthquake resistance, etc., and has been calculated and tested to ensure safety and reliability.
Installation instructions
step1、Mounting aluminum bracket
Unfold the pre-assembled ground aluminum bracket, install the bracket on the cement foundation with the bolts embedded, align the brackets in the entire unit, and tighten the bolts.
step2、Installation of ground track
The ground track is laid on the longitudinal beam of the aluminum bracket, the position of the track is adjusted and fixed on the aluminum bracket by the rail clamp. See Figure 4 and Figure 5.
If the length of the track is not enough, the multiple tracks are connected together by rail connectors. Figure 6
step3、Installation component
Tile the components on the rails, adjust the dimensions, and secure the components with side and intermediate pressure blocks. Figure 7, Figure 8
